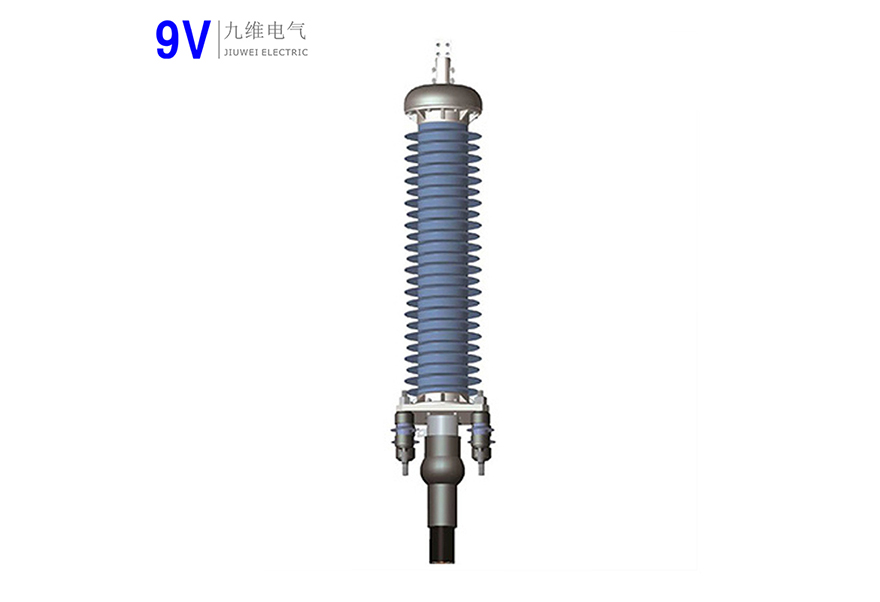

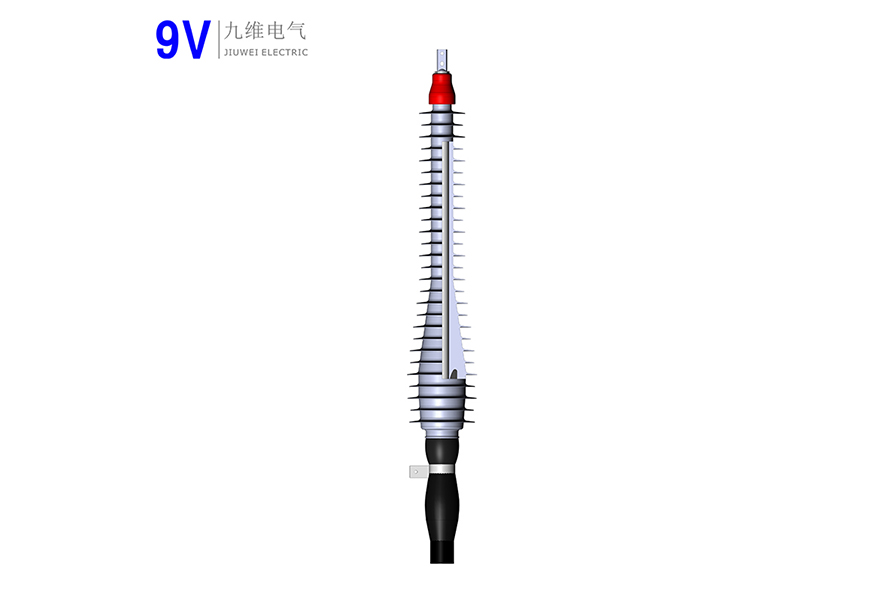

Termination with porcelation insulator
Scope of application:
For cross linked polyethylene insulated power cables 240-3000mm2.

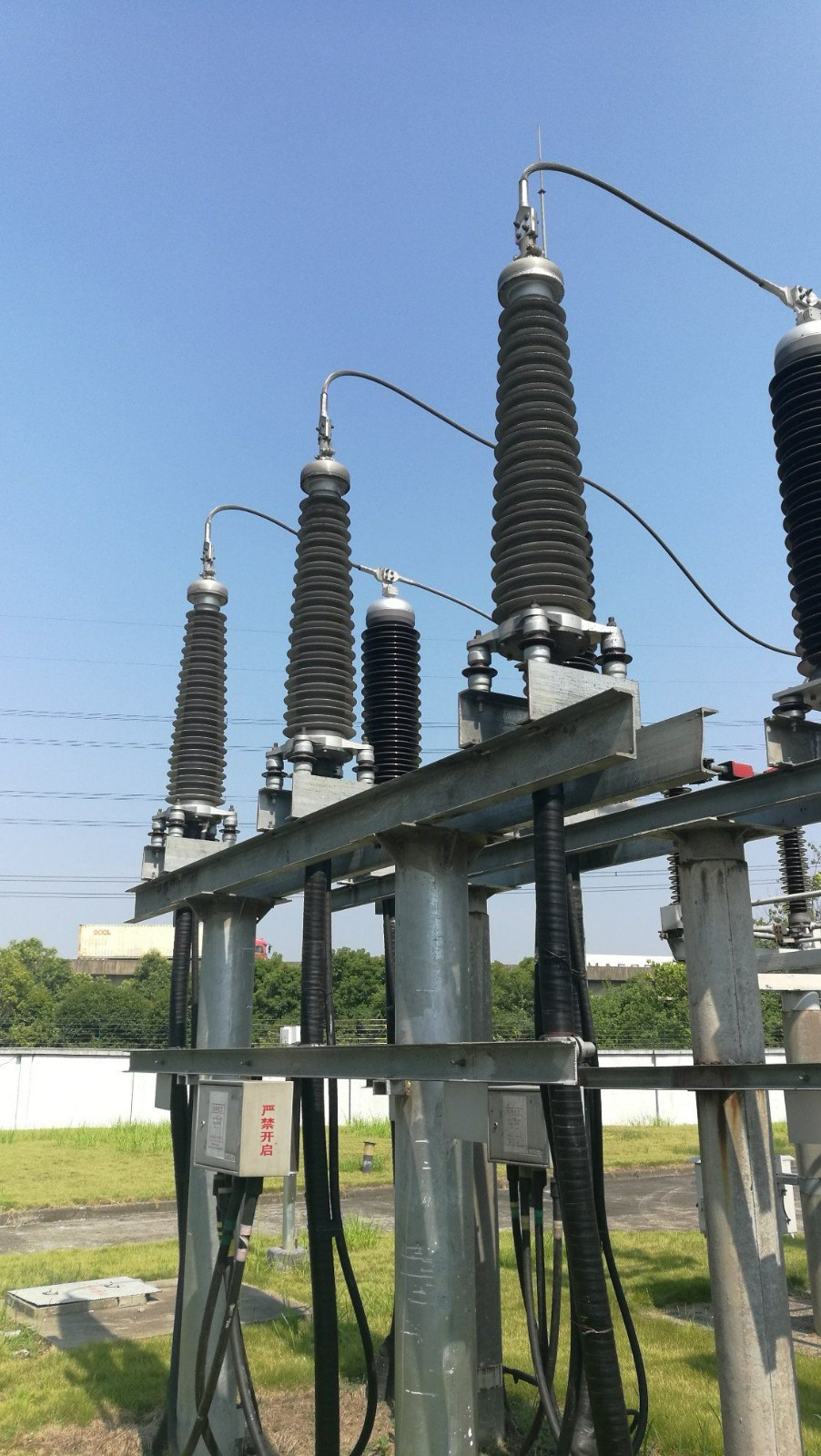

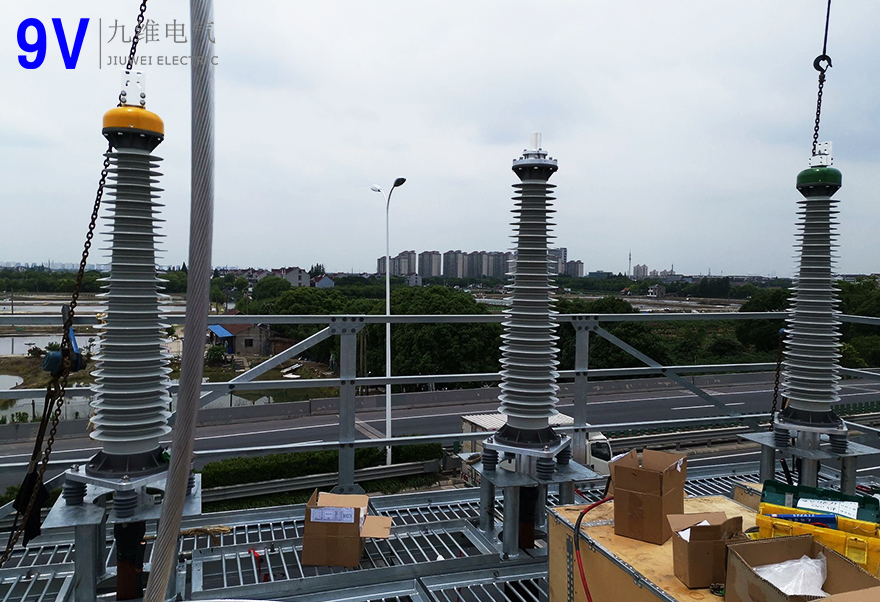

Suitable for large-scale chemical industry, iron and steel, power substations, coastal areas.
Features:
Made of epoxy fiberglass insulated tube covered with liquid silicone rubber, remarkable safety and explosion-proof.
The stress cone is made of imported liquid silicone rubber injection molding, with a long and stable holding force and electric field uniformity.
Composite sleeve for the size of the umbrella structure, the whole outside the formation of a cone, has a very good anti-fouling flash, Weather resistance, anti-leakage marks, anti-electro-etching and water-repellent ability.
The terminal adopts multiple sealing structure to prevent water seepage and oil leakage during operation. water seepage and oil leakage phenomenon.
Type & Specification | |||||
Size /mm | 38/66kV | 50/66kV | 64/110kV | 76/132kV | 127/220kV |
H | 900 | 900 | 1500 | 1500 | 2500 |
A | 1110 | 1110 | 1935 | 1935 | 3100 |
B | 1525 | 1525 | 2155 | 2155 | 3600 |
C | 318 | 318 | 318 | 318 | 460 |
D | 200 | 200 | 200 | 200 | 300 |
E | Φ22 | Φ22 | Φ22 | Φ22 | Φ32 |
Creepage Distance | ≥2248 | ≥2248 | ≥3906 | ≥4495 | ≥7812 |

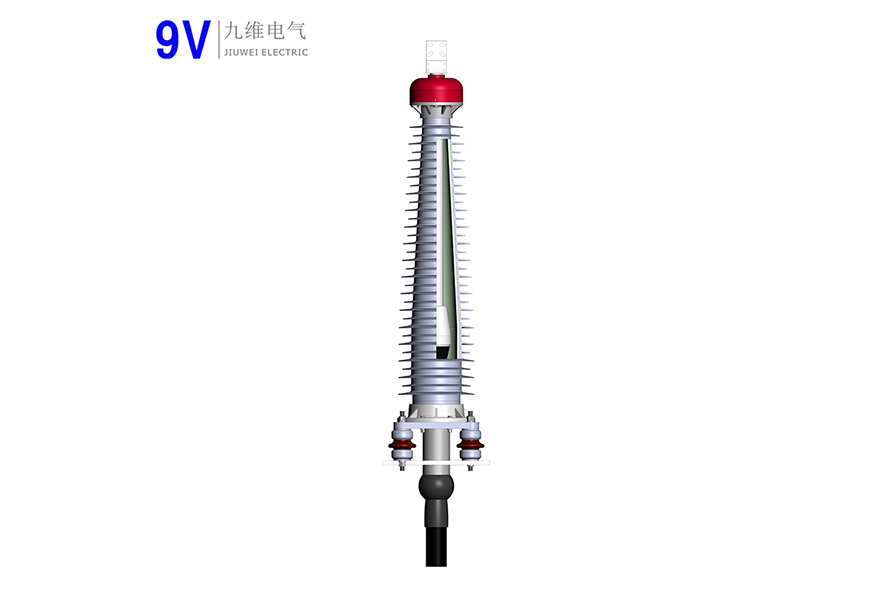

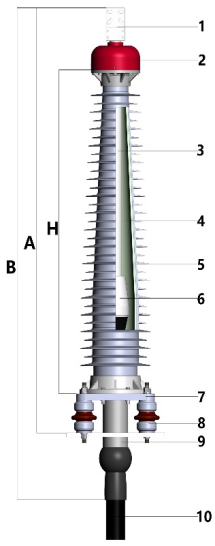

Structure | |||
![]() | 1,wire clip (optional) 2,equalizing cover 3,core insulation 4,insulating oil 5,composite set 6,stress cone 7,fixed plate 8,support insulator 9,tail pipe 10,cable |
All test classifications and codes:
No.# | Test Name | Code |
1 | Routine test | R |
2 | Sample test | S |
3 | Type test | T |
4 | Pre-qualification test | P |
5 | Additional test | A |

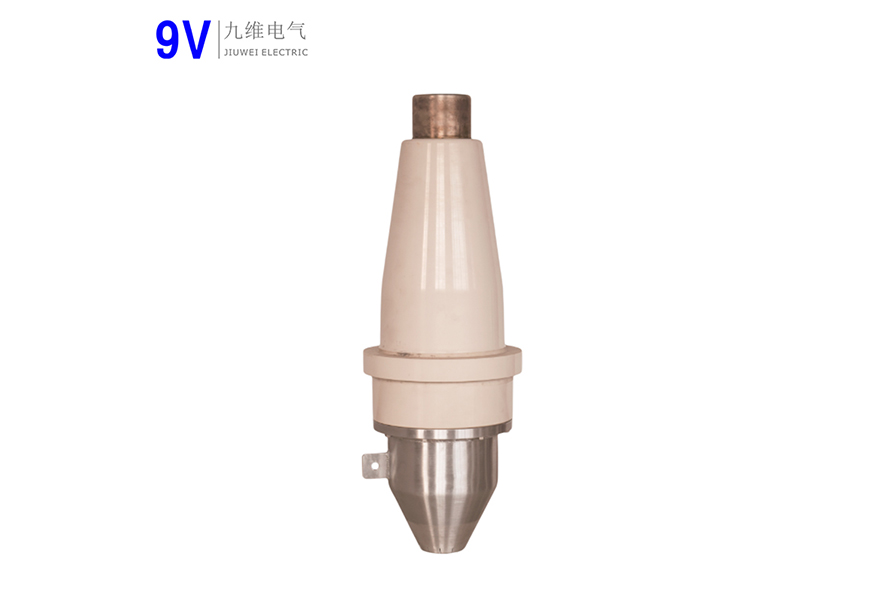

The following routine tests are performed on stress cones, epoxy bushings of GIS terminals and prefabricated intermediate joints of each product at 66kV and above.
Item | Voltage | ||||
38/66kV | 50/66kV | 64/110kV | 76/132kV | 127/220kV | |
Partial discharge | 54kV, no detectable local discharge over background | 75kV, no detectable local discharge over background | 96kV, no detectable local discharge over background | 114kV, no detectable local discharge over background | 190kV, no detectable local discharge over background |
The power frequency withstand voltage | 90kV/30min | 125kV/30min | 160kV/30min | 190kV/30min | 318kV/30min |
Sealing | Seal fittings, porcelain bushings, composite bushings for 0.25±0.01MPa/1h, no leakage | ||||
The epoxy casing was subjected to 0.6~0.7MPa/1h with no leakage. | |||||
Appearance | The products are free of damage, cracks, and other defects that may affect the quality and appearance of the products. |
66-220kV Main Test Parameters
Item | Standard | Test Category | Product Category | ||||||||
38/66kV | 50/66kV | 64/110kV | 76/132kV | 127/220kV | Porcelain Sleeve Terminal | Composite Sleeve Terminal | GIS terminal | Straight / Insulated Joint | flexible terminal | ||
Sealing Fittings, Porcelain, Composite Sleeves | 0.25±0.01MPa/1h, no leakage | R | ✔ | ✔ | ✔ | — | — | ||||
Epoxy Sleeve | 0.6~0.7MPa/1h, no leakage | ||||||||||
Partial discharge of prefabricated parts | 54kV | 75kV | 96kV | 114kV | 190kV | R | ✔ | ✔ | ✔ | ✔ | ✔ |
Discharge test no more than background | |||||||||||
Frequency withstand voltage of prefabricated parts | 90kV | 125kV | 160kV | 190kV | 318kV | R | ✔ | ✔ | ✔ | ✔ | ✔ |
30min,no flashover, no breakdown | |||||||||||
Partial discharge at room temperature | 54kV | 75kV | 96kV | 114kV | 190kV | T | ✔ | ✔ | ✔ | ✔ | ✔ |
Discharge test no more than background | |||||||||||
Thermal cycling voltage test | 72kV | 100kV | 128kV | 152kV | 254kV | T | ✔ | ✔ | ✔ | ✔ | ✔ |
20 times cycles, no flashover, no breakdown | |||||||||||
Partial discharge test at high temperature | 54kV | 75kV | 96kV | 114kV | 190kV | T | ✔ | ✔ | ✔ | ✔ | ✔ |
Discharge test no more than background | |||||||||||

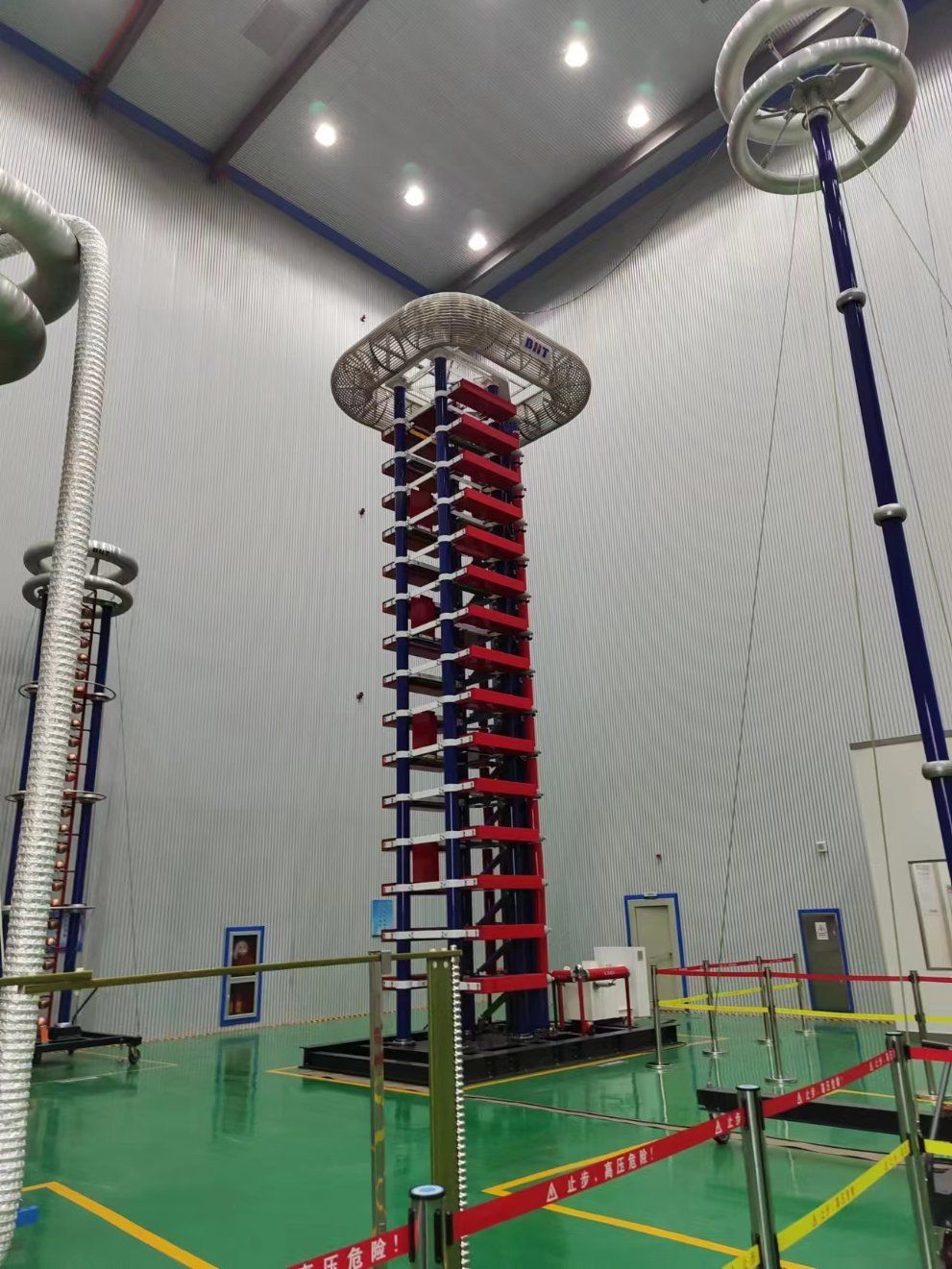

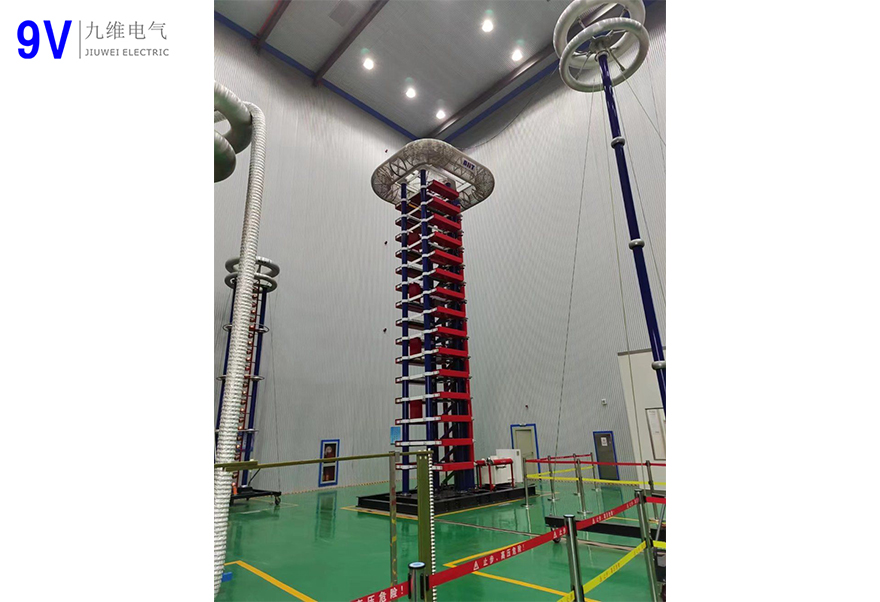

Lightning impact test and subsequent frequency withstand voltage test | 450kV | 550kV | 650kV | 1050kV | T | ✔ | ✔ | ✔ | ✔ | ✔ | |
10 times for each positive and negative polarity | |||||||||||
120kV | 160kV | 190kV | 318kV | ||||||||
15min, no flashover, no breakdown | |||||||||||
Directly buried joint outer protective layer immersion voltage test | Two ends impact among the 60kV,an end of hit 30kV | Two ends impact among the 75kV,an end of hit 37.5kV | Two ends impact among the 95kV,an end of hit 47.5kV | T | — | — | — | ✔ | — | ||
Sealing test after assembly of accessories | 0.25±0.01MPa/1h, no leakage | T | ✔ | ✔ | ✔ | ✔ | ✔ | ||||
Outdoor terminal rain frequency voltage test | 140kV | 185kV | 460kV | T | ✔ | ✔ | — | — | ✔ | ||
1min, no flashover, no breakdown | |||||||||||
Pillar insulator voltage test | 20kV/1min, no flashover, no breakdown | T | ✔ | ✔ | — | — | — | ||||
Radio interference test for outdoor terminals | 61kV | 81kV | 140kV | S | ✔ | ✔ | — | — | ✔ | ||
1MHz radio interference, voltage ≤ 450μV | 1MHz radio interference, voltage ≤ 500μV | ||||||||||
The attachment sample inspection | Naked eye detection accessories such as cable system, no signs of degradation canaffect the normal operation of the system | T | ✔ | ✔ | ✔ | ✔ | ✔ |
![]() | ![]() |
Production Ability• 8 professional production lines • 7900 square meters of workshop area • dozens of cable accessories production equipment | |
R&D Capabilities • many years of experience in R&D and customization of cable accessories, Professional R&D team • a number of professional technical engineers • mature professional technologies such as conductor link and electric field control. • Passed and obtained a number of qualification certifications | |
![]() | Honorary Certification • CE and SGS certification reports underwritten by PICC • High-tech Enterprise • Jiangsu cable accessories industry (top ten) • Jiangsu energy saving and environmental protection products |
Provide reasonable and professional use and matching solutions according to customer needs. After signing the contract, a special person will be responsible for process follow-up, timely control the progress, and cooperate with logistics to ensure the smooth delivery of the order. Perfect after-sales guarantee system, 30-year warranty, manuals and professional installation instructions are provided at the same time |
