  • Gas-immersed termination for GIS
  • Gas-immersed termination for GIS
  • Gas-immersed termination for GIS

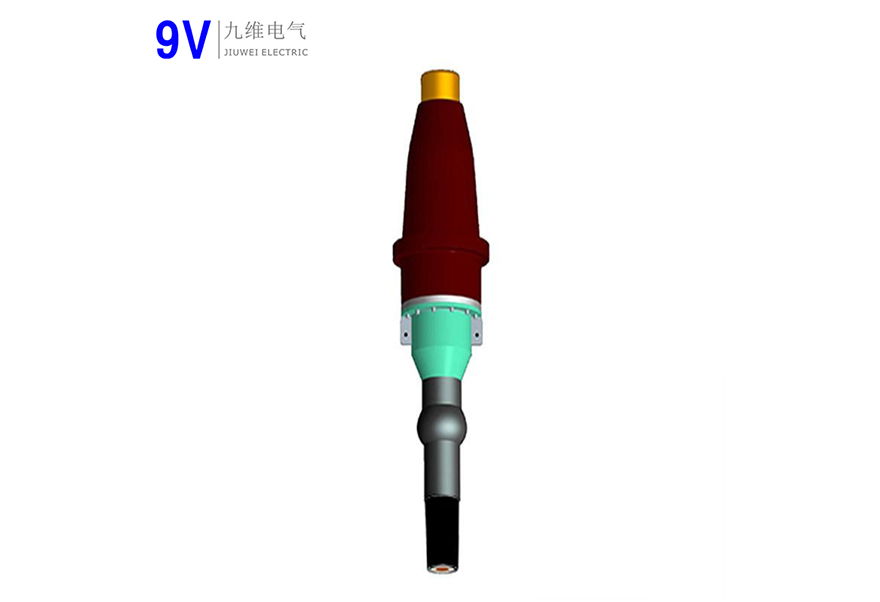

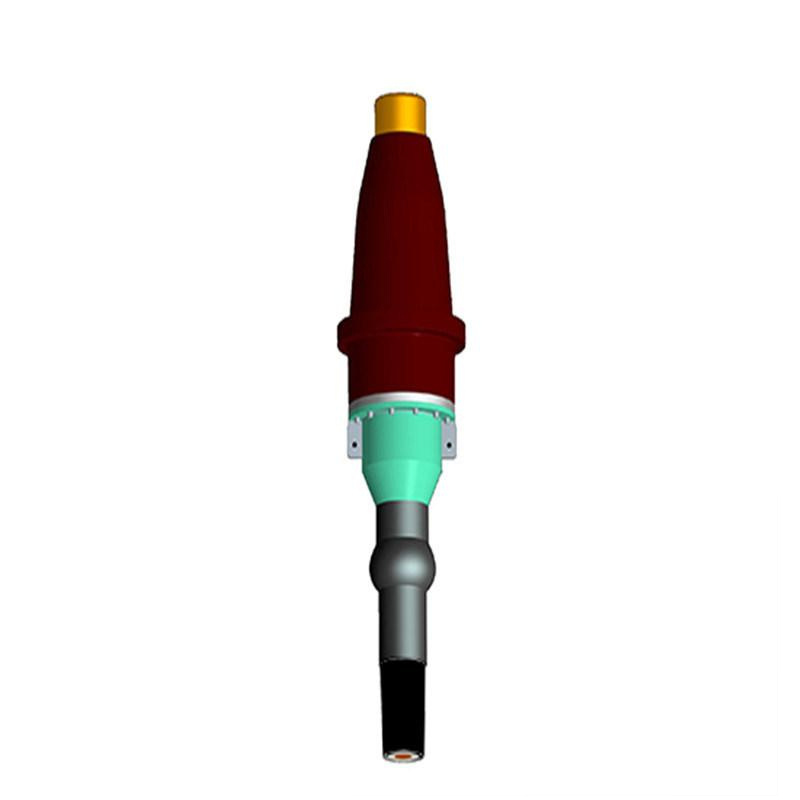

  • Name:Gas-immersed termination for GIS
  • Model:66kV / 110kV / 132kV / 220kV

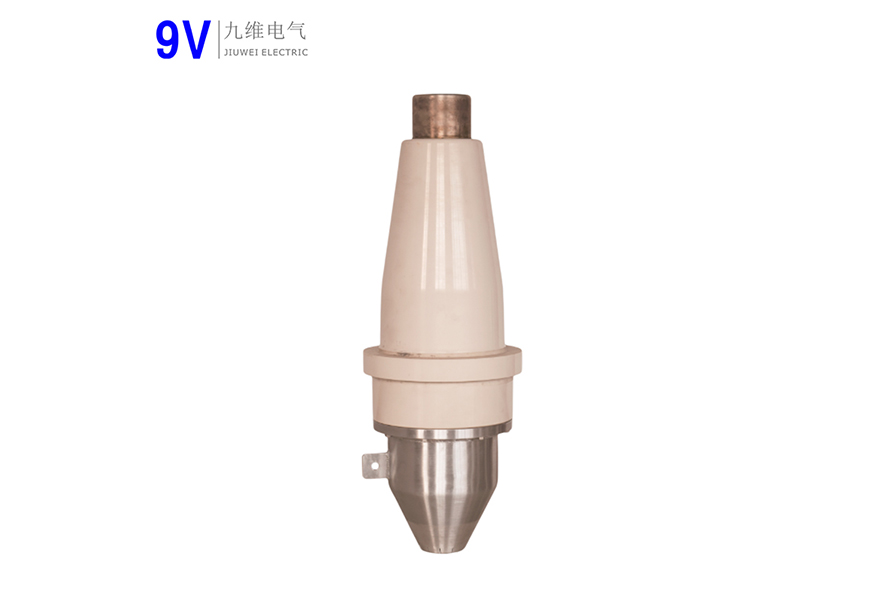

1产品参数。.jpgTermination with porcelation insulator

Scope of application:

For cross linked polyethylene insulated power cables 240-3000mm2.

Suitable for large-scale chemical industry, iron and steel, power substations, coastal areas.

Features:

  • Dry insulated plug-in construction without any insulating filler..

  • Stress cone adopts imported liquid silicone rubber injection molding, by the spring and cone support Precise positioning, to ensure close contact with the cable, epoxy casing cone surface.

  • Compact structure, small volume, light weight, easy installation and maintenance.

  • The top fixture is pre-cast in an epoxy sleeve and the plug-in metal sealing structure ensures a Top sealing.


Type & Specification
Size /mm38/66kV50/66kV64/110kV76/132kV127/220kV
L-short310310470470620
A-short900900102010201260
L-long583583757757960
A-long12001200131013101600

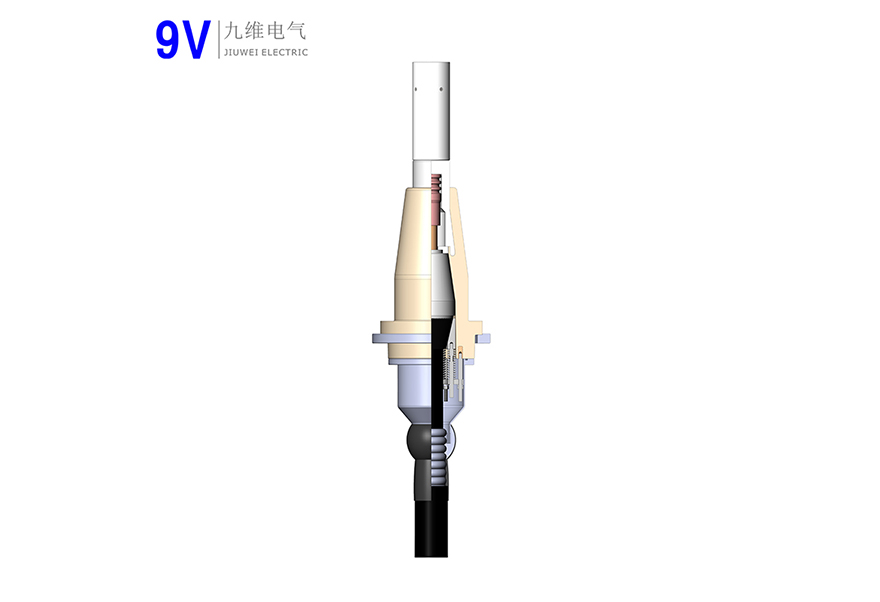

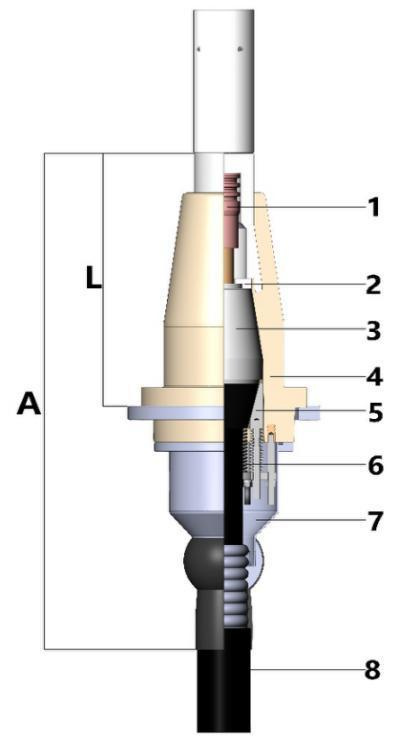

Structure

76-132kv-High-Tension-Gas-Immersed-Termination-for-Gis-High-Voltage-Cable-Joint (3).jpg

1,plug rod

2,locking set

3,stress cone

4,epoxy casing

5,cone

6,spring clamp device

7,tail pipe

8,cable

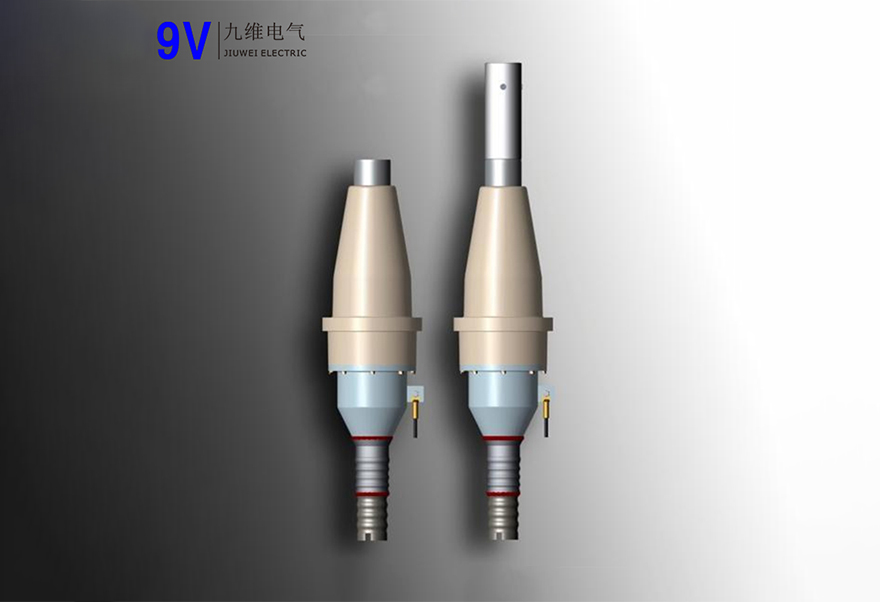

76-132kv-High-Tension-Gas-Immersed-Termination-for-Gis-High-Voltage-Cable-Joint (1).jpg

76-132kv-High-Tension-Gas-Immersed-Termination-for-Gis-High-Voltage-Cable-Joint (4).jpg

              All test classifications and codes:

No.#Test NameCode
1Routine testR
2Sample testS
3Type testT
4Pre-qualification testP
5Additional testA

The following routine tests are performed on stress cones, epoxy bushings of GIS terminals and prefabricated intermediate joints of each product at 66kV and above.

ItemVoltage
38/66kV50/66kV64/110kV76/132kV127/220kV
Partial discharge

54kV,

 no detectable local discharge over background

75kV,

no detectable local discharge over background

96kV,

no detectable local discharge over background

114kV,

no detectable local discharge over background

190kV,

no detectable local discharge over background

The power frequency withstand voltage90kV/30min125kV/30min160kV/30min190kV/30min318kV/30min
SealingSeal fittings, porcelain bushings, composite bushings for 0.25±0.01MPa/1h, no leakage
The epoxy casing was subjected to 0.6~0.7MPa/1h with no leakage.
AppearanceThe products are free of damage, cracks, and other defects that may affect the quality and appearance of the products.

66-220kV Main Test Parameters

ItemStandardTest CategoryProduct Category
38/66kV50/66kV64/110kV76/132kV127/220kVPorcelain Sleeve TerminalComposite Sleeve TerminalGIS terminalStraight / Insulated Jointflexible terminal
Sealing Fittings, Porcelain, Composite Sleeves0.25±0.01MPa/1h, no leakageR
Epoxy Sleeve0.6~0.7MPa/1h, no leakage
Partial discharge of prefabricated parts54kV75kV96kV114kV190kVR
Discharge test no more than background
Frequency withstand voltage of prefabricated parts 90kV125kV160kV190kV318kVR
30min,no flashover, no breakdown
Partial discharge at room temperature54kV75kV96kV114kV190kVT
Discharge test no more than background
Thermal cycling voltage test72kV100kV128kV152kV254kVT
20 times cycles, no flashover, no breakdown
Partial discharge test at high temperature54kV75kV96kV114kV190kVT
Discharge test no more than background

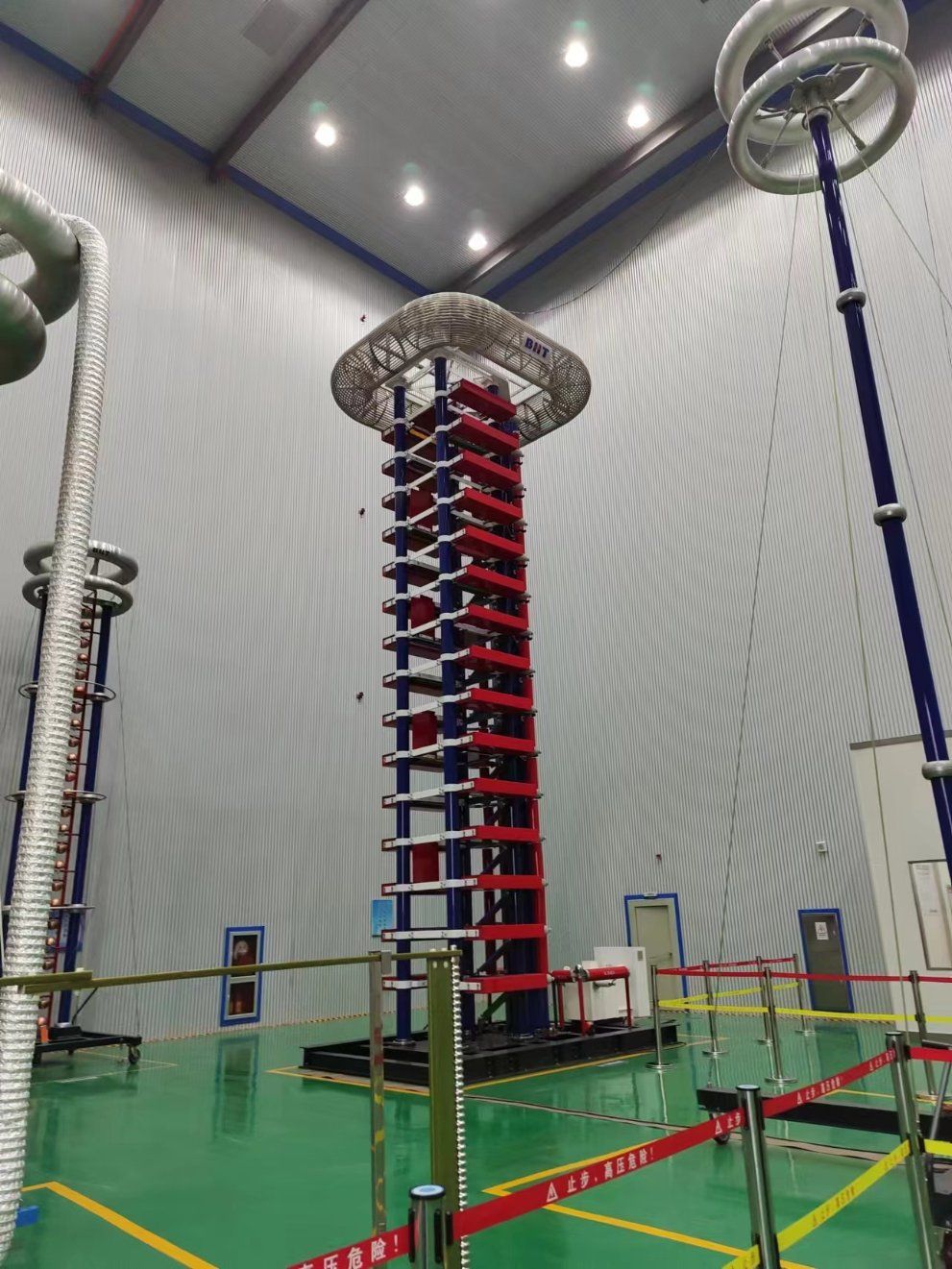

Lightning impact test and subsequent frequency withstand voltage test450kV550kV650kV1050kVT
10 times for each positive and negative polarity
120kV160kV190kV318kV
15min, no flashover, no breakdown
Directly buried joint outer protective layer immersion voltage testTwo ends impact among the 60kV,an end of hit 30kVTwo ends impact among the 75kV,an end of hit 37.5kVTwo ends impact among the 95kV,an end of hit 47.5kVT
Sealing test after assembly of accessories0.25±0.01MPa/1h, no leakageT
Outdoor terminal rain frequency voltage test140kV185kV460kVT
1min, no flashover, no breakdown
Pillar insulator voltage test20kV/1min, no flashover, no breakdownT
Radio interference test for outdoor terminals61kV81kV140kVS
1MHz radio interference, voltage ≤ 450μV1MHz radio interference, voltage ≤ 500μV
The attachment sample inspectionNaked eye detection accessories such as cable system, no signs of degradation canaffect the normal operation of the systemT


76-132kv-High-Tension-Gas-Immersed-Termination-for-Gis-High-Voltage-Cable-Joint.jpg76-132kv-High-Tension-Gas-Immersed-Termination-for-Gis-High-Voltage-Cable-Joint (5).jpg
